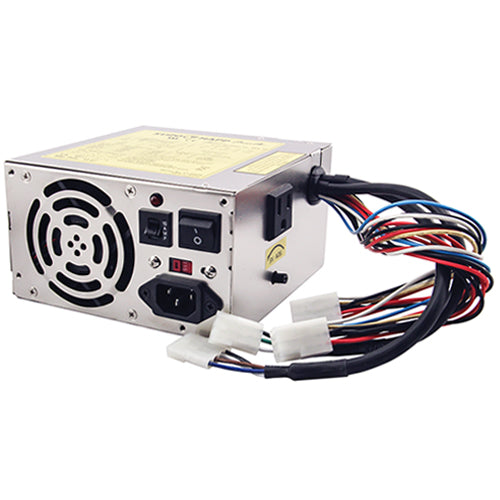

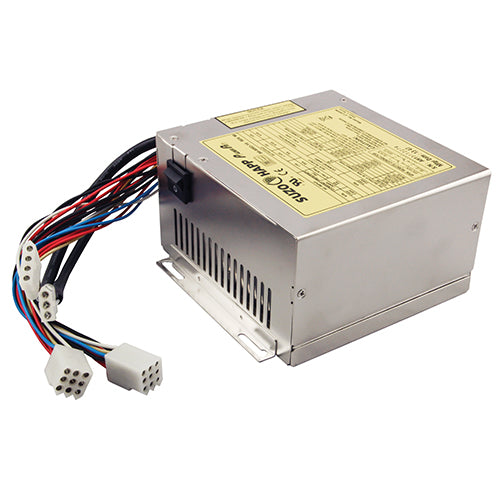

Arcade Game Power Supply Dual Switch 200w

200W POWER PRO POWER SUPPLY WITH DUAL SWITCH & REMOTE CAPABLE

There are 100's of different types and size arcade power supplies . This power supply is one of the most used arcade power supplies to replace most old ones.  This Arcade Power supply voltage outputs +5v 20A, +12v 8A, -5v .5A, -12 .5A and Dual AC input 115vac/230vac, selectable by switch.

• UL and CSA Recognized.
• 200 Watt power supply.
• New Innovative Dual On/Off and Remote switch capable design, allows for remote power switch placed outside cabinet.
• Additional 8 Circuit Molex plug with +5vdc and +12vdc outputs for additional accessories.
• Dual AC input 115vac/230vac, selectable by switch.
• AC plug for hook-up of Bill Validator, 110vac 1.0A.
• Metal case - AT size.

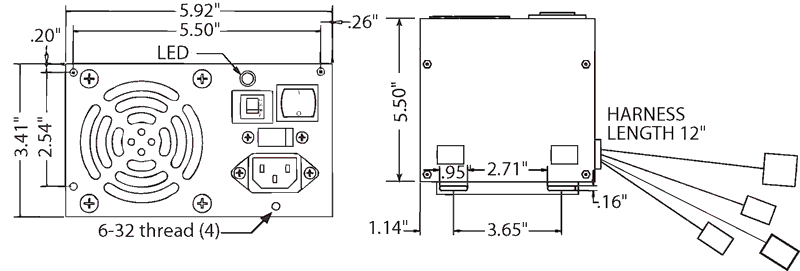

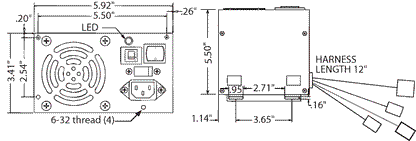

• Physical Size: 3-1/2" H x 5-7/8" W x 5-1/2" D.
• Supplied with 6' long SJT power cord .
• The four screw Mounting holes are 6-32.

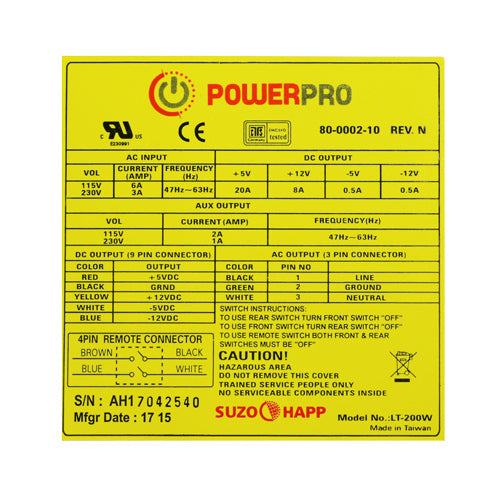

• See images for connector & label detail.

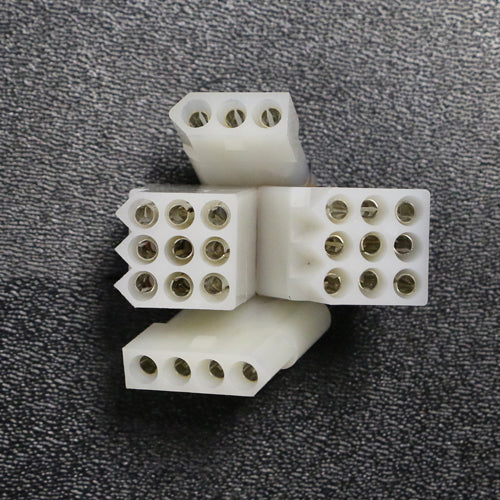

• Connectors:
• (1) 4 pin
• (1) 3 pin
• (2) 9 pin
